Painel Fotovoltaicos 550W – OSDA – ODA550-36V-MH

Descrição

ODA550-36V-MH

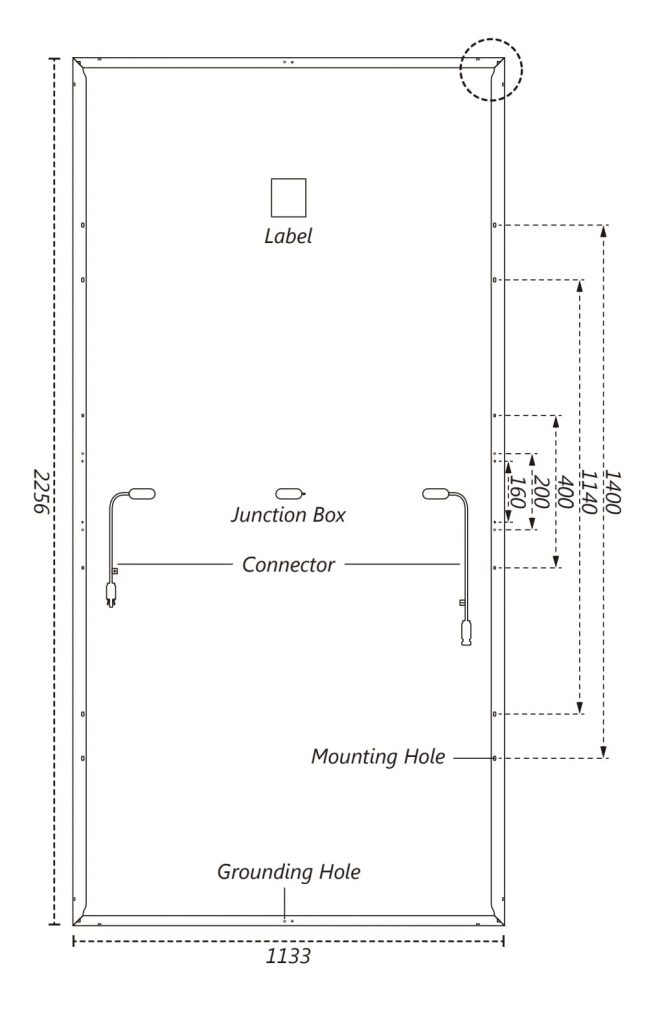

Design

Especificação mecânicas

Cells Type Dimension (L×W×T)
Mono 182×91mm 2256×1133×35mm
Weight Packing
29kg 31pcs/pallet, 620pcs/40HQ
Output Cable
(Including connector)
No.of Cells
Glass
Junction box
Connector 4.0mm 2 , 300/400mm in length,
length can be customized
144 (6×24)
3.2mm High Transmission, Antireflection Coating
IP68, 3 Bypass Diodes
MC4 Compatible

STC-Electrical Characteristics
Module Type
DHM-72X10
Maximum Power (Pmax) 520W 525W 530W 535W 540W 545W 550W
Open-circuit Voltage (Voc) 49.0V 49.2V 49.4V 49.6V 49.8V 50.0V 50.2V
Maximum Power Voltage (Vmp) 41.2V 41.4V 41.6V 41.8V 42.0V 42.2V 42.4V
Short-circuit Current (Isc) 13.42A 13.48A 13.54A 13.60A 13.66A 13.72A 13.78A
Maximum Power Current (Imp) 12.62A 12.68A 12.74A 12.80A 12.86A 12.91A 12.97A
Module Efficiency (%) 20.33% 20.52% 20.72% 20.91% 21.11% 21.30% 21.52%
Temperature Coefficient of Isc 0.05%/°C
Temperature Coefficient of Voc -0.31%/°C
Temperature Coefficient of Pmax
-0.35%/°C
Standard Test Environment : Irradiance 1000W/m , Cell temperature 25°C, Spectrum AM1.5
2
NOCT-Electrical Characteristics
Maximum Power (Pmax) 387W 391W 394W 398W 402W 405W 409W
Open-circuit Voltage (Voc) 46.0V 46.1V 46.3V 46.5V 46.7V 46.9V 47.1V
Maximum Power Voltage (Vmp)
38.6V 38.8V 39.0V 39.2V 39.4V 39.6V 39.8V
Short-circuit Current (Isc) 10.84A 10.89A 10.94A 10.99A 11.04A 11.09A 11.13A
Maximum Power Current (Imp) 10.01A 10.06A 10.11A 10.15A 10.20A 10.24A 1
